SRL02
Diffused Direct linear

OVERVIEW

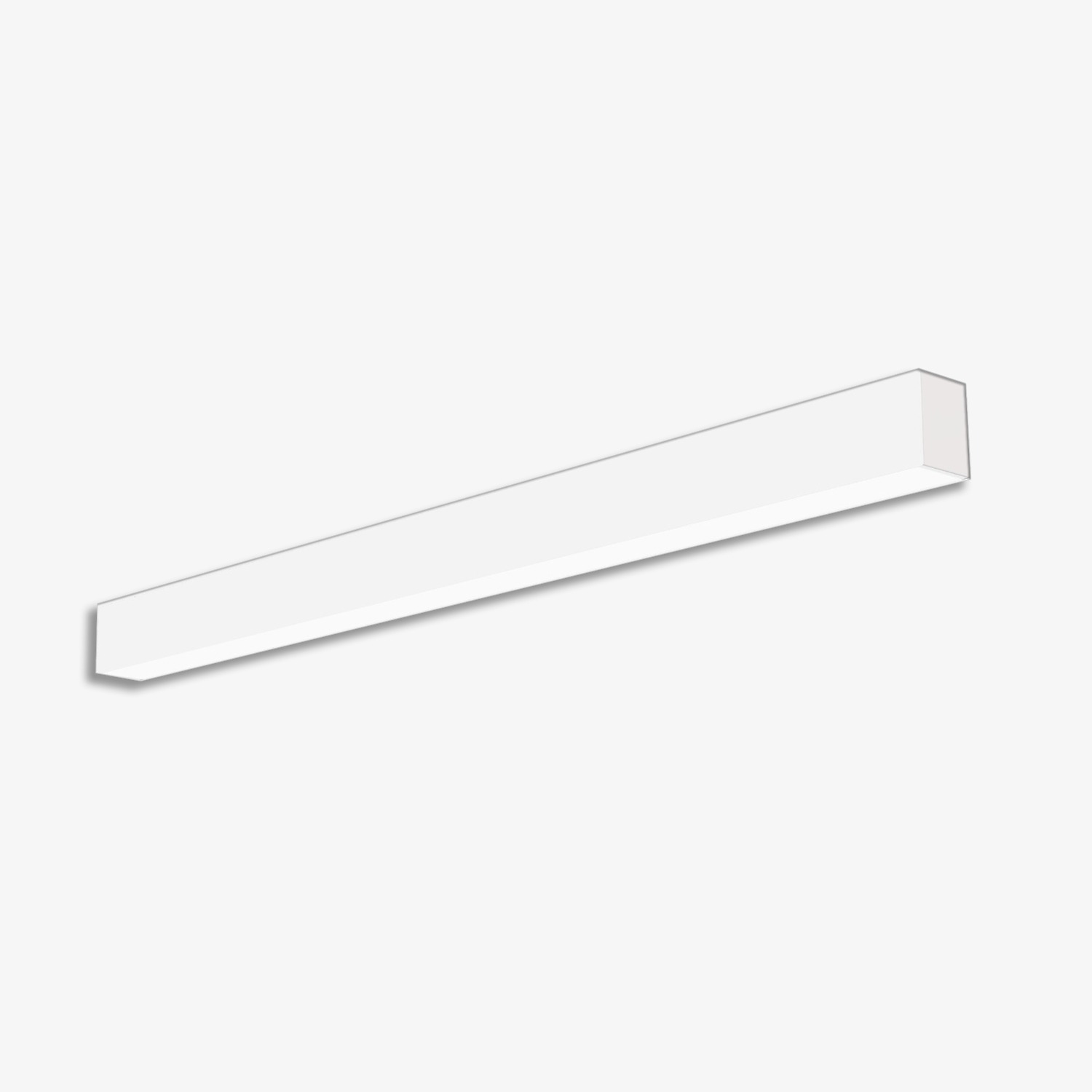

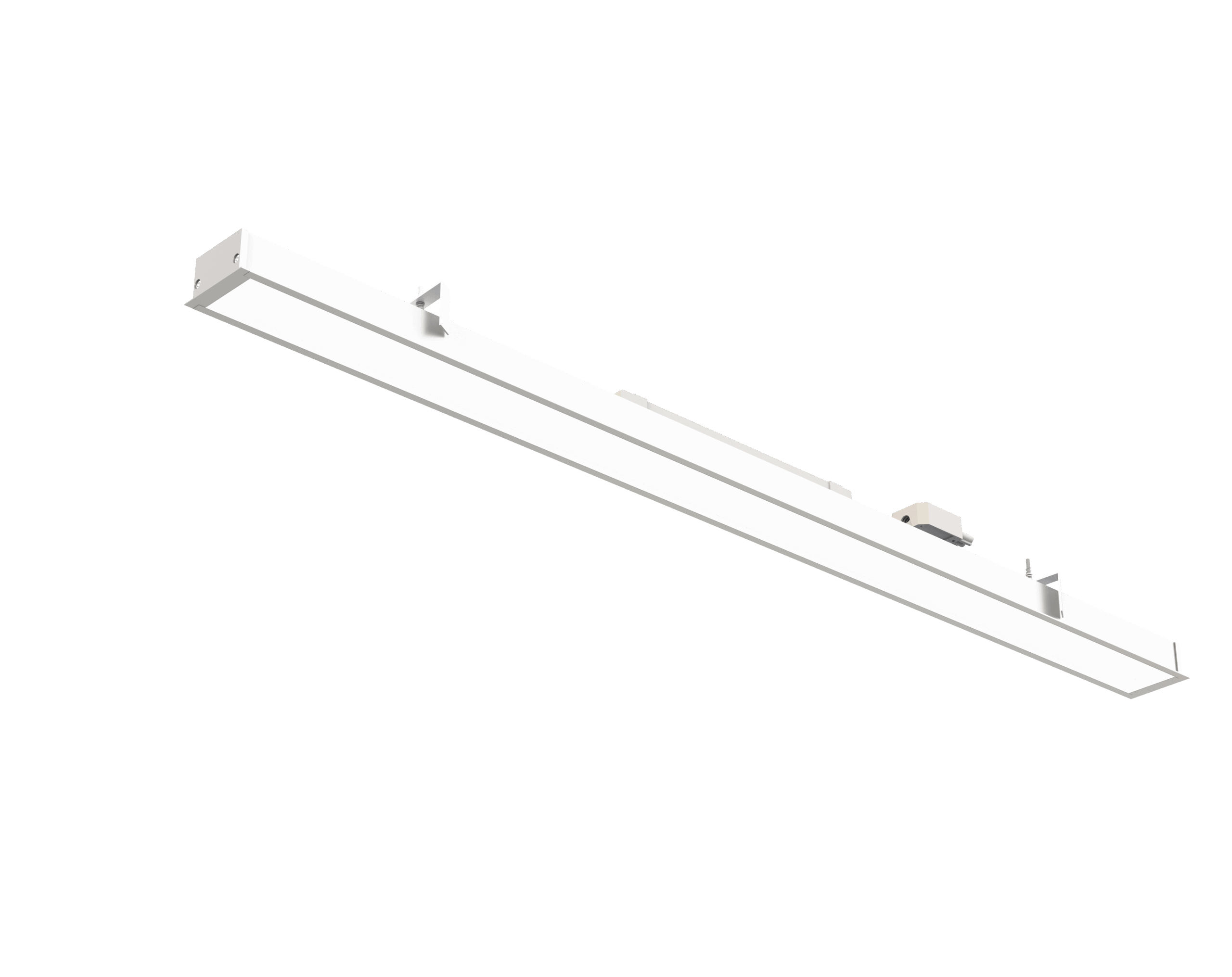

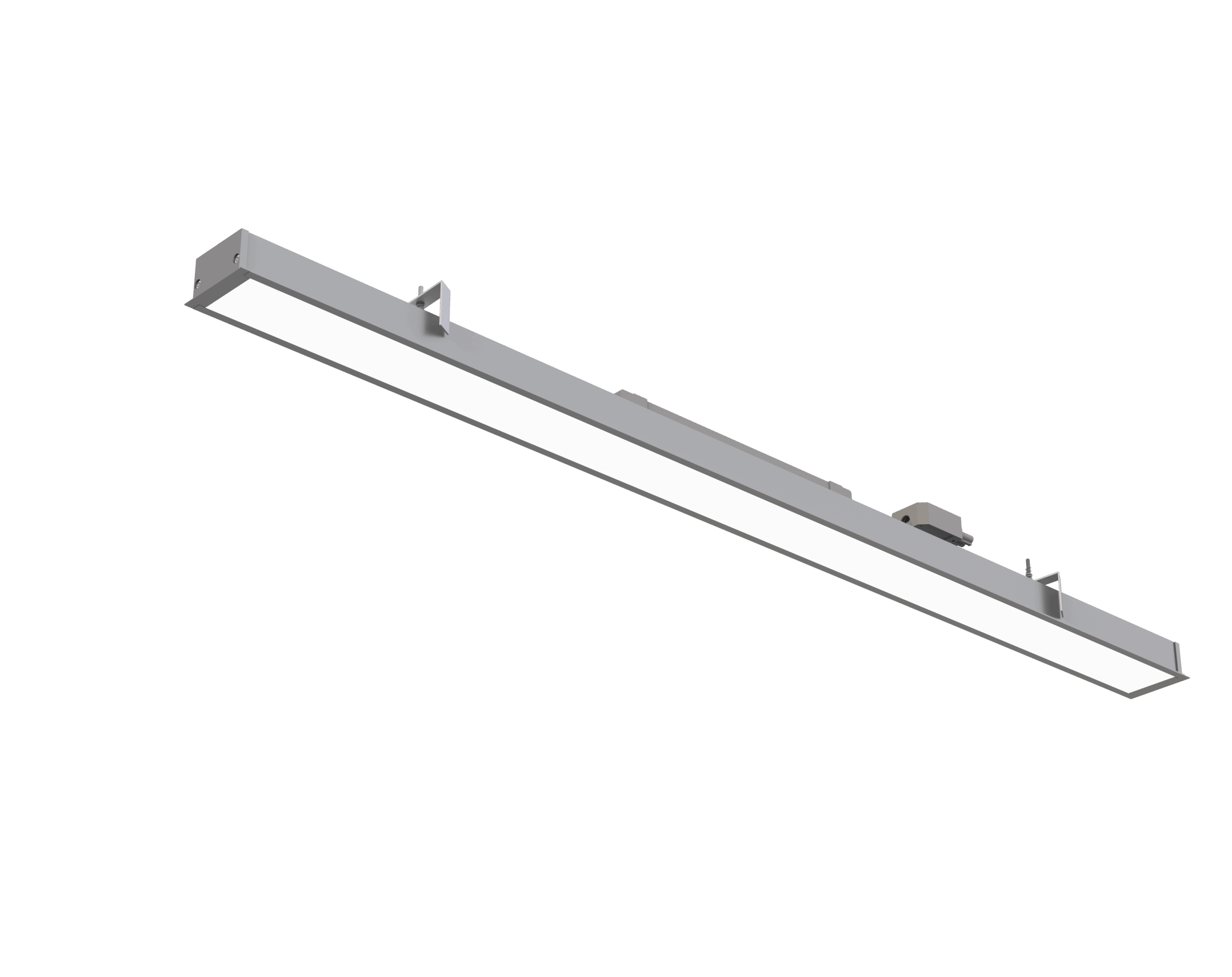

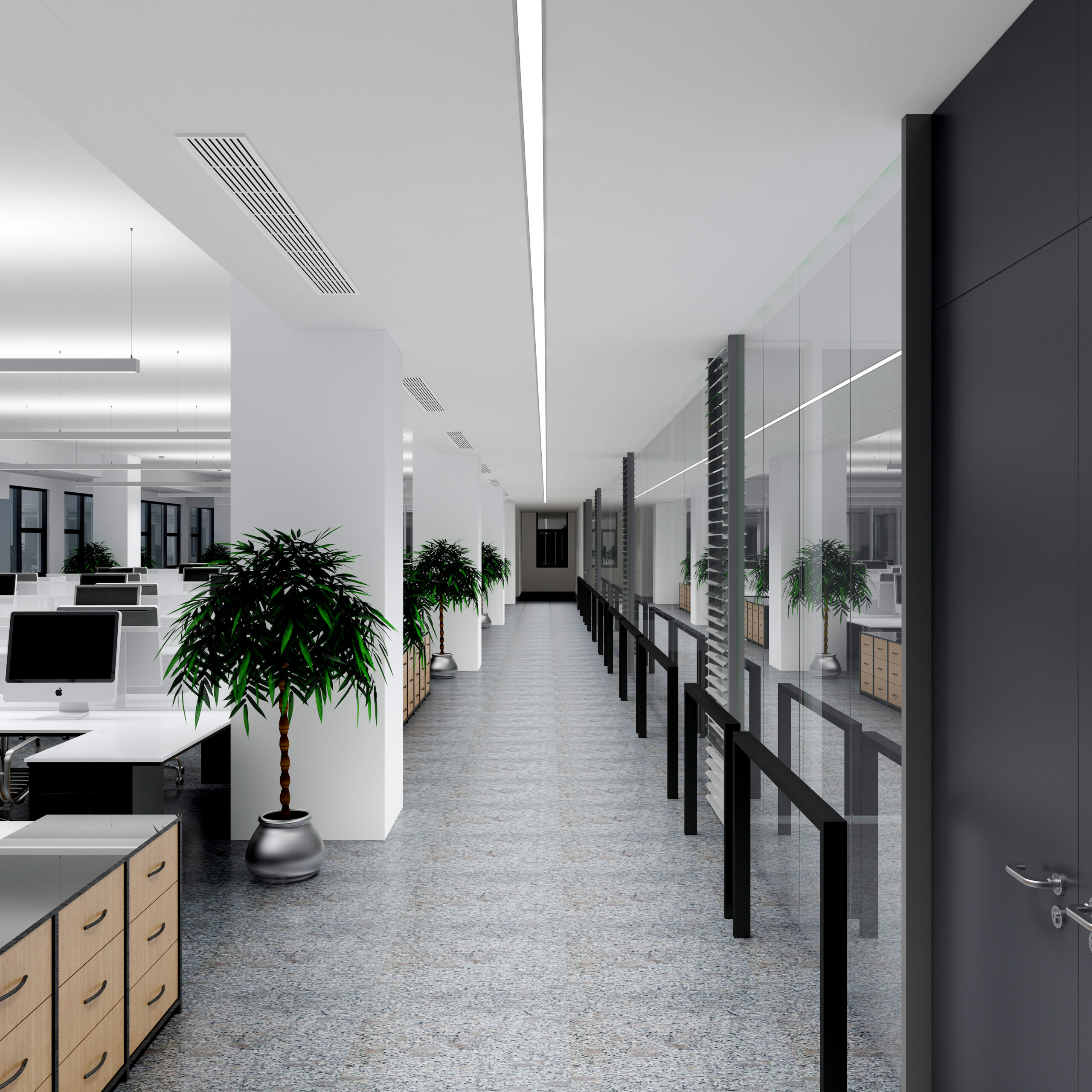

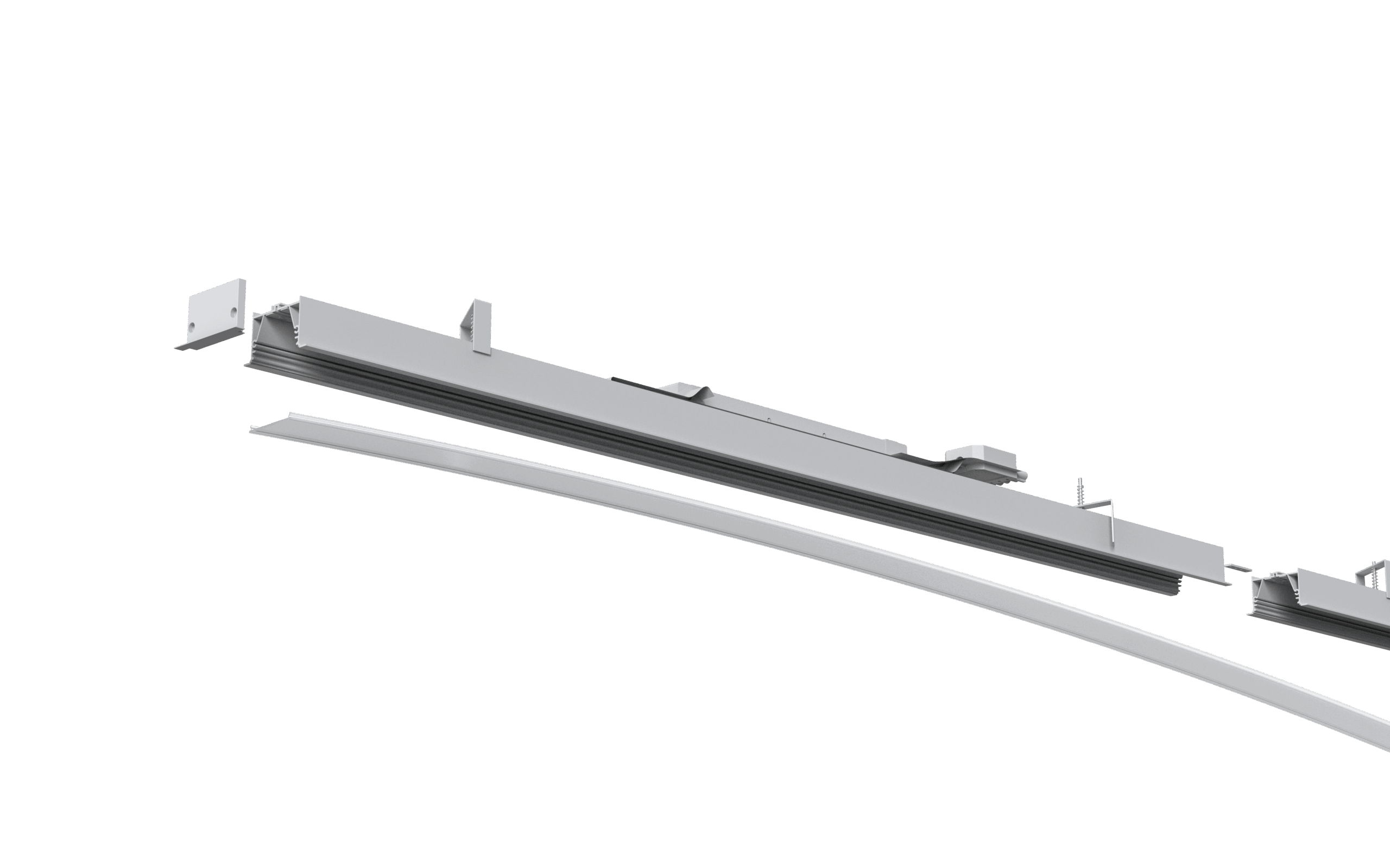

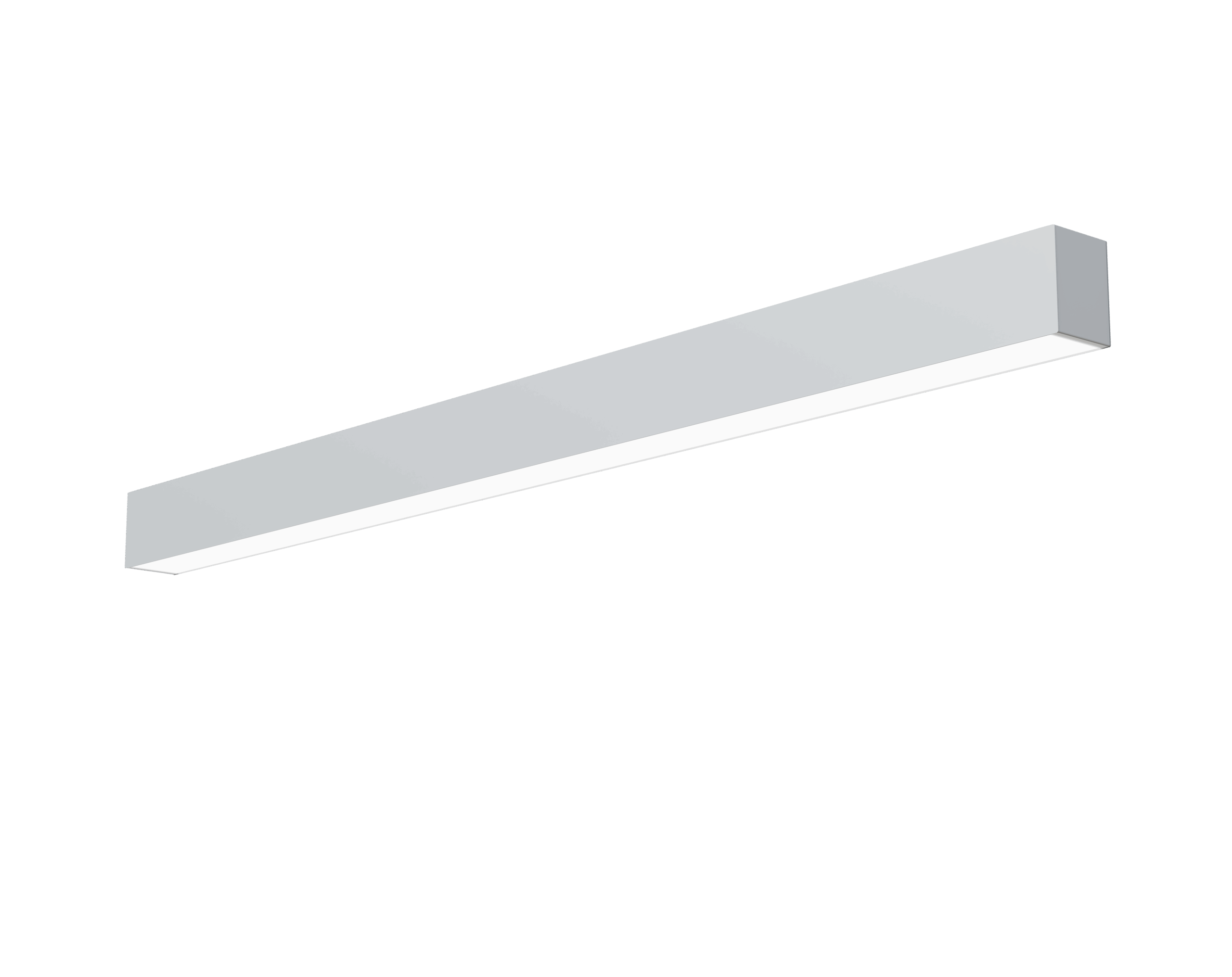

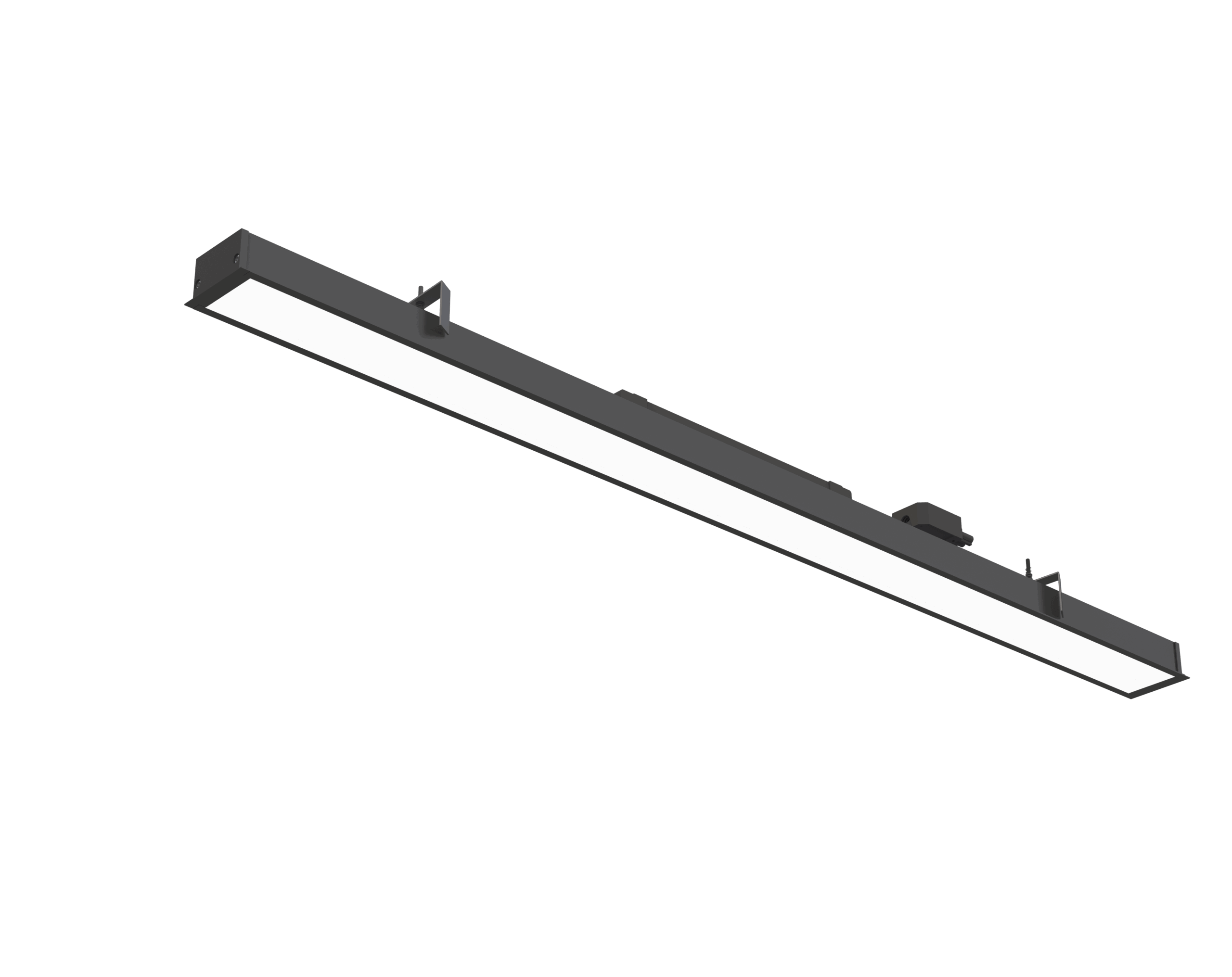

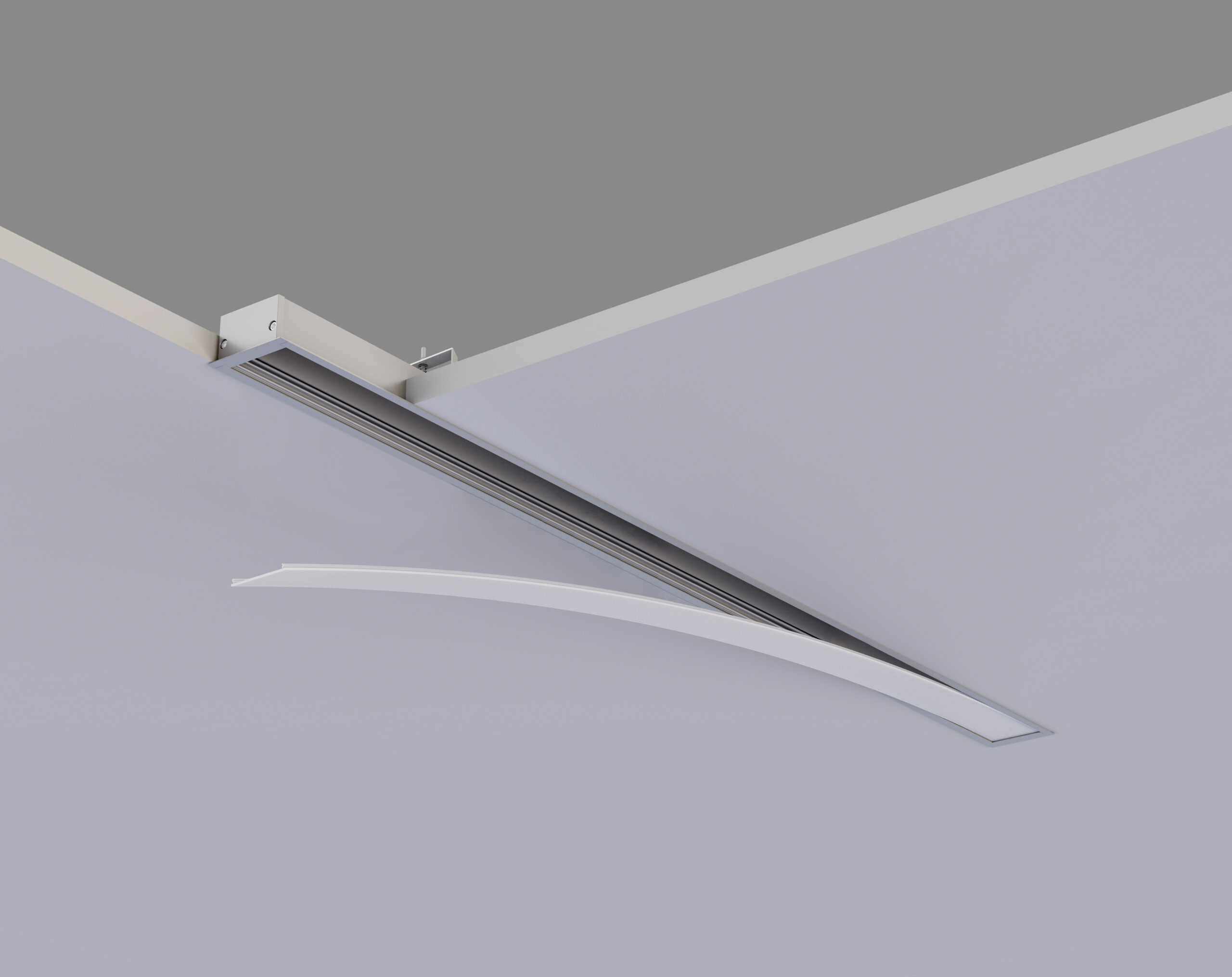

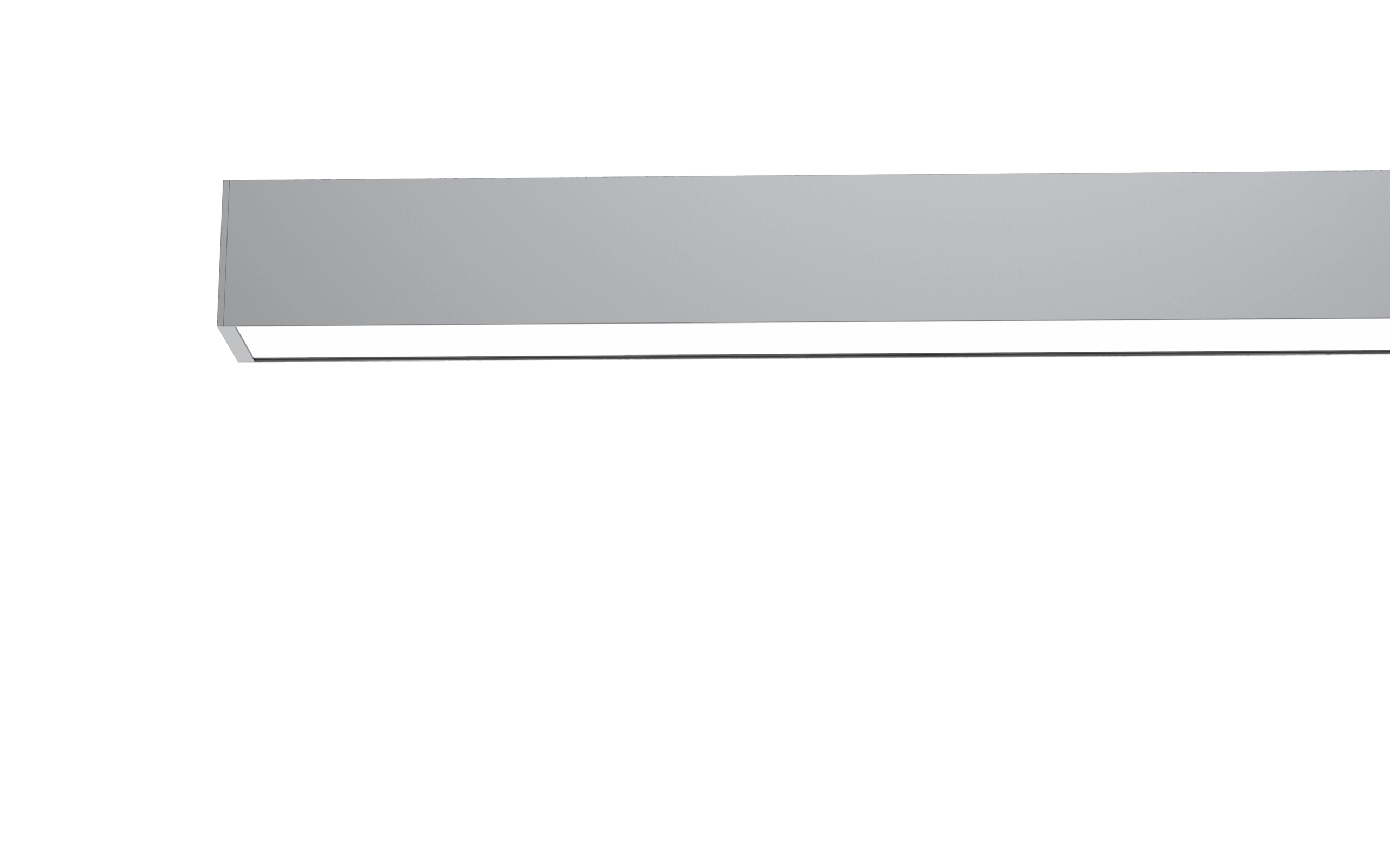

SRL-02 Linear is a versatile architectural LED system designed for both surface and recessed installation, offering a clean, modern look in any space. With its slim profile and continuous light effect, SRL-02 Linear is ideal for corridors, offices, retail, and residential applications where a refined, minimal aesthetic is desired.

Available in multiple lengths, outputs, and CCT options, SRL Linear delivers uniform, high-efficiency illumination while giving designers the flexibility to choose the most suitable mounting style without changing the fixture family.

Type: Architectural Linear Diffused lens
VOLTAGE: 100-277 VAC
POWER DIRECT: 15W / 18W /30W /36W ↓
Lumen Direct : 1950LM / 2340LM /3750LM / 4500LM ↓
DIMMING:1-10V , Dali
CCT: 3000K , 4000K , 6000K
CRI: >80
UGR: >19
BA DIRECT: 90° ↓
BA INDIRECT : 110°↑
BEAM ANGLE: 90° ↓
FINISH COLOR: Silver (White , Black Option)
IP: 20
LIFETIME: 50,000 hrs L80(B10)

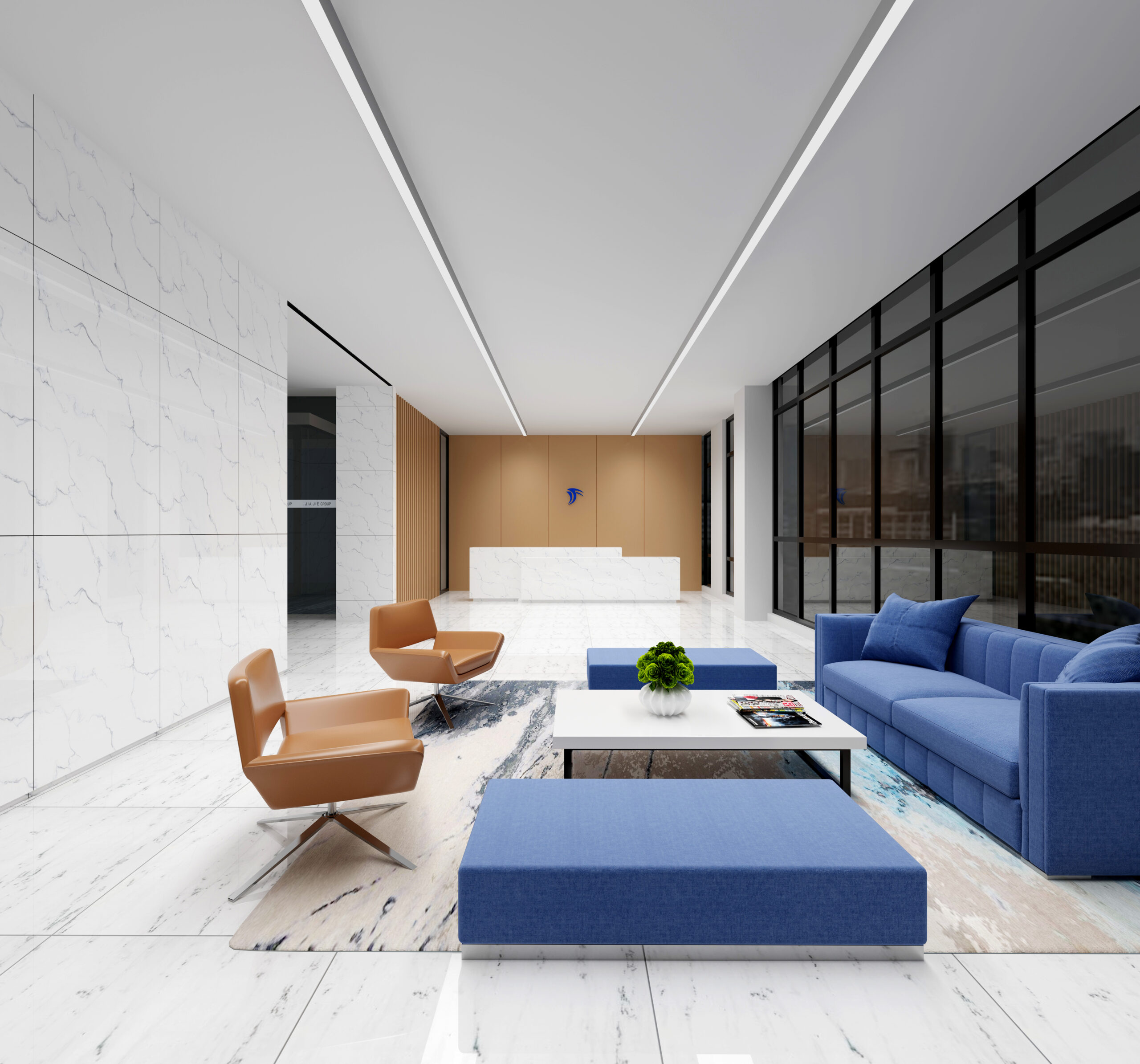

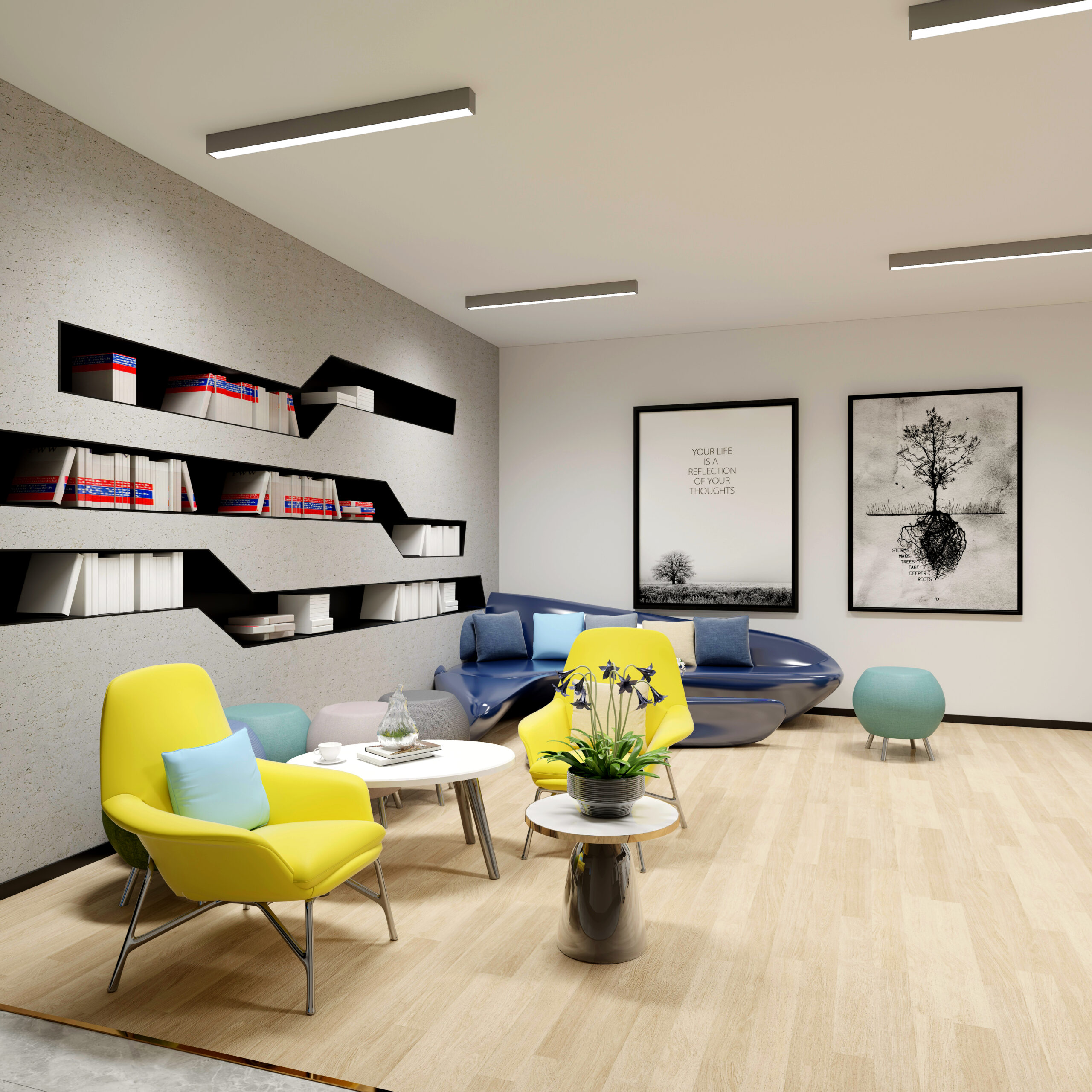

APPLICATION: Commercial Spaces , Office , restaurant ,Gym, Medical centers , Common Areas ,… .
